Foil Drive Assist Max

*** NOW WITH THE V3 CONTROLLER ***

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine:

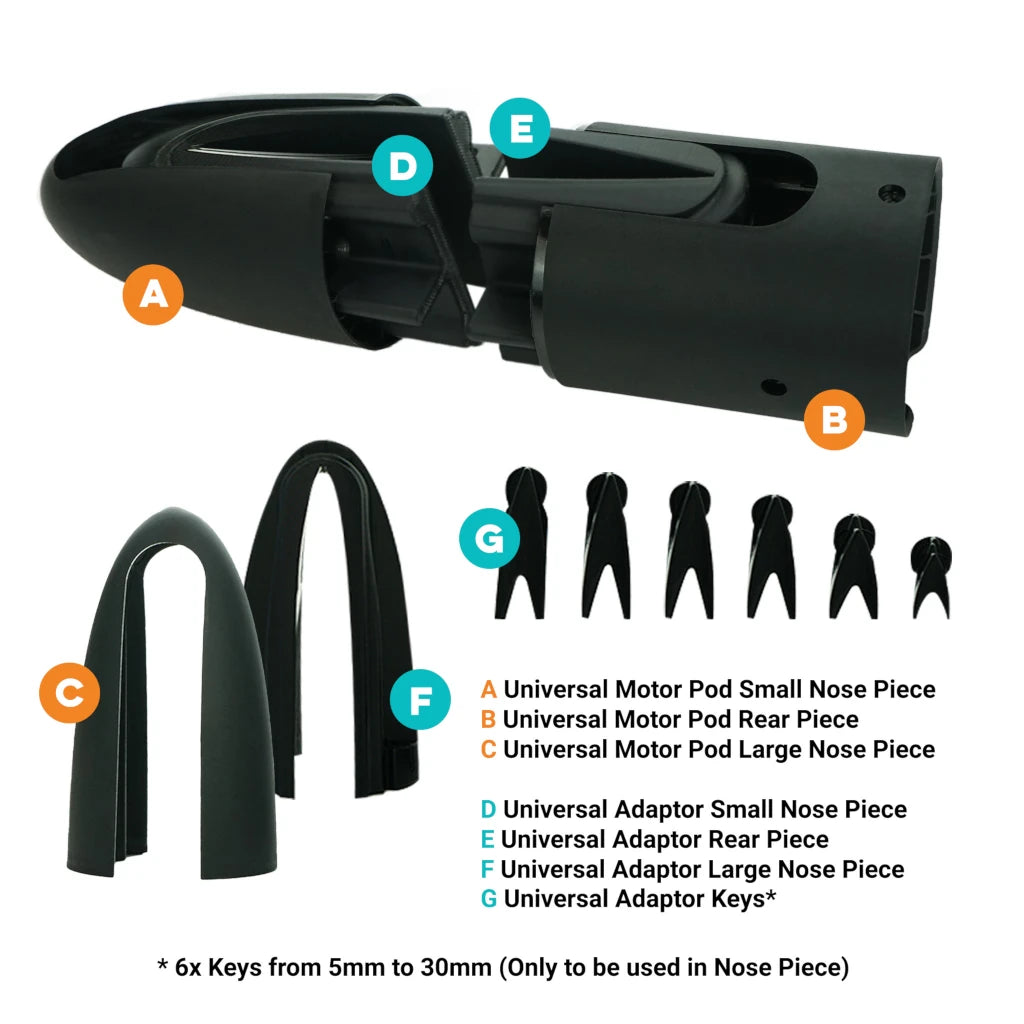

• Universal Mast Adaptor that suits 99% of foil masts available
• Cable lengths are easily interchangeable for ultimate customization with the new Removable V2 Motor Cable
• Bluetooth Connectivity to the Foil Drive Mobile App

Simply choose your desired Motor:

• V2 Motor
• V2 Motor High Power

And your desired Battery:

• MAX Power Battery
• MAX Sport Battery
• MAX Travel Battery
• MAX High Power Battery

Note: Boards with Carbon Tracks are experiencing connectivity issues. See the External Antenna

Installations Instructions

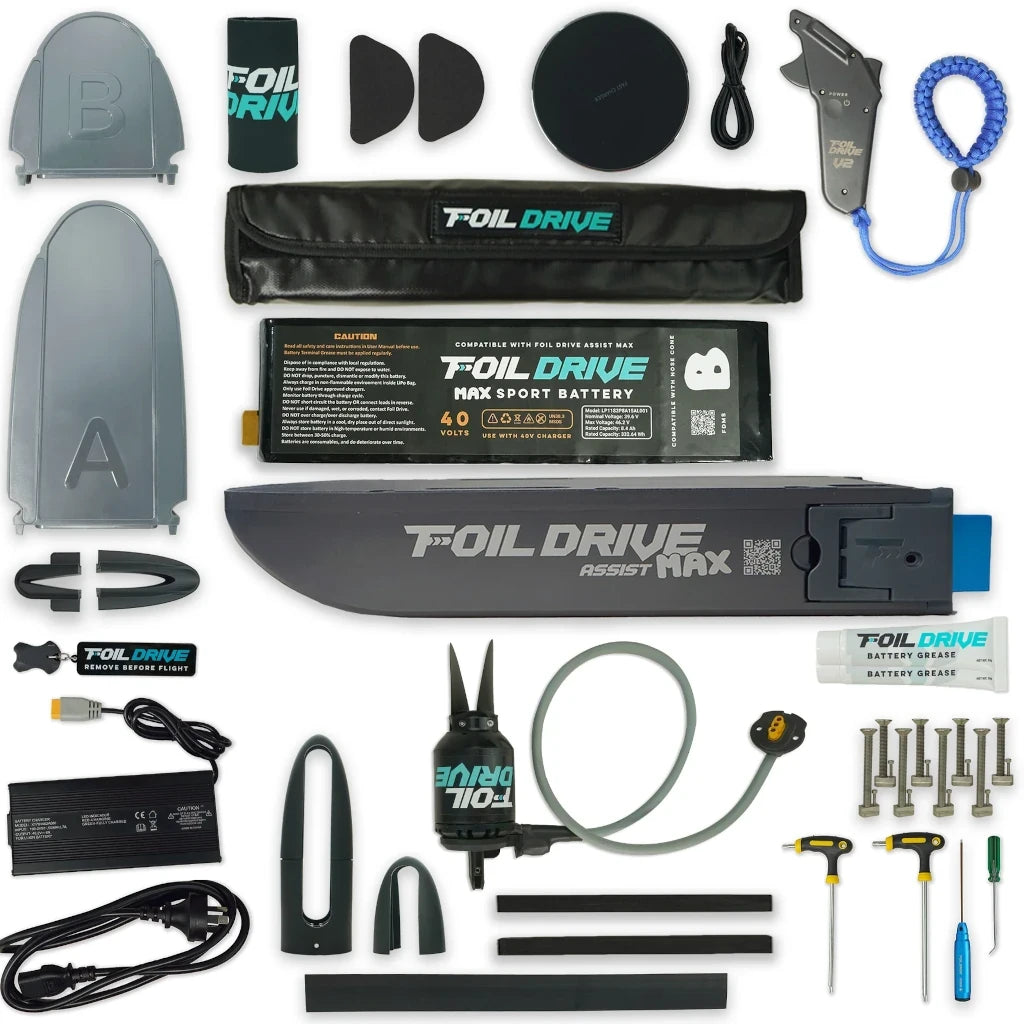

What's Included:

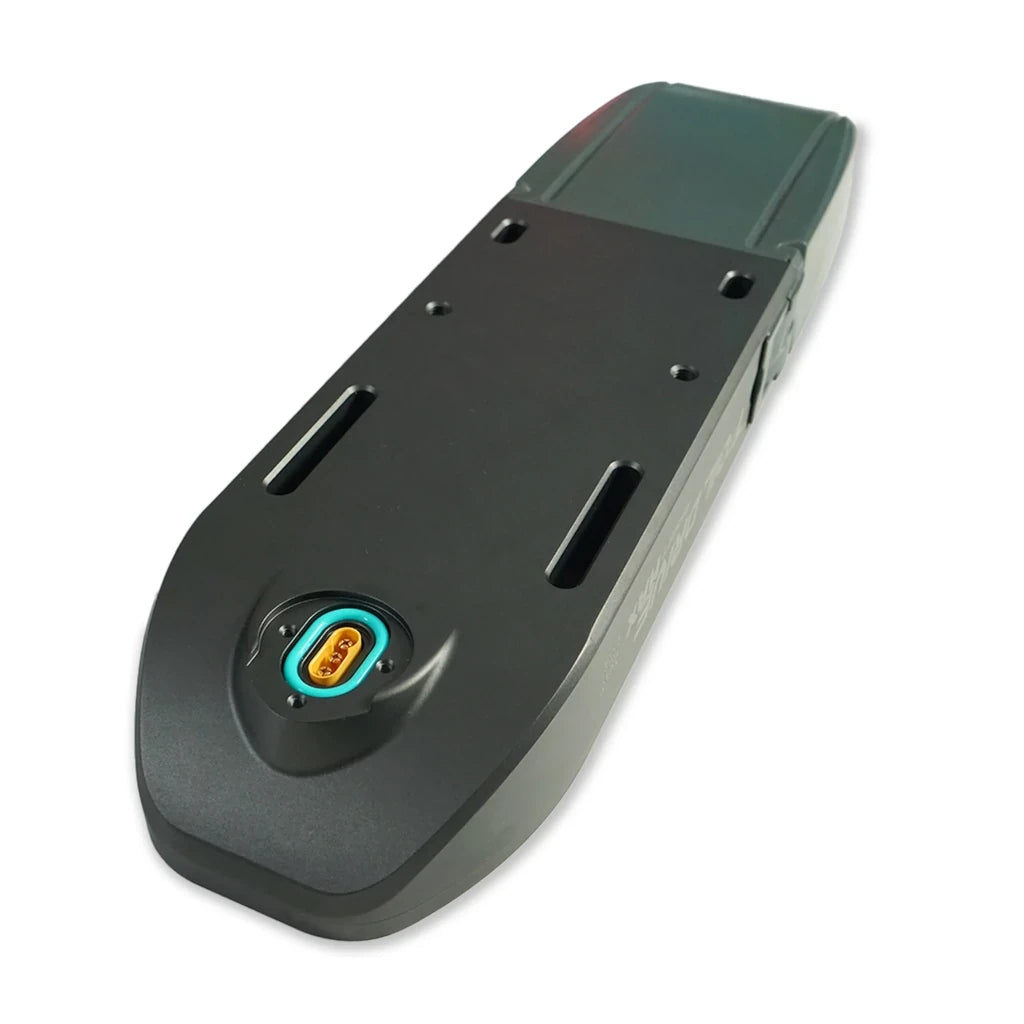

*Choice of Battery with Lipo Bag
*Choice of Motor - comes standard with 20cm cable and 2 blade propeller

Foil Drive Assist MAX
Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone A
Nose Cone B
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys

V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap

2x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm

Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

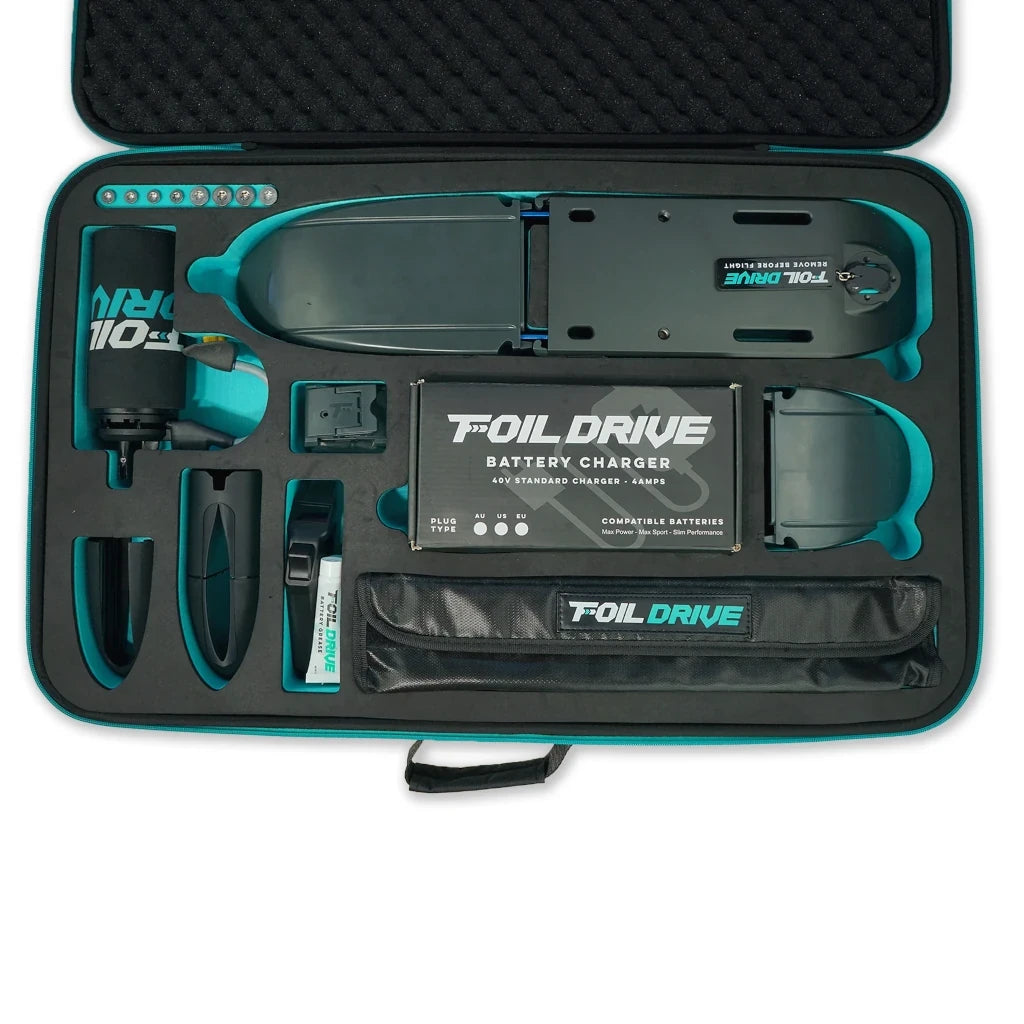

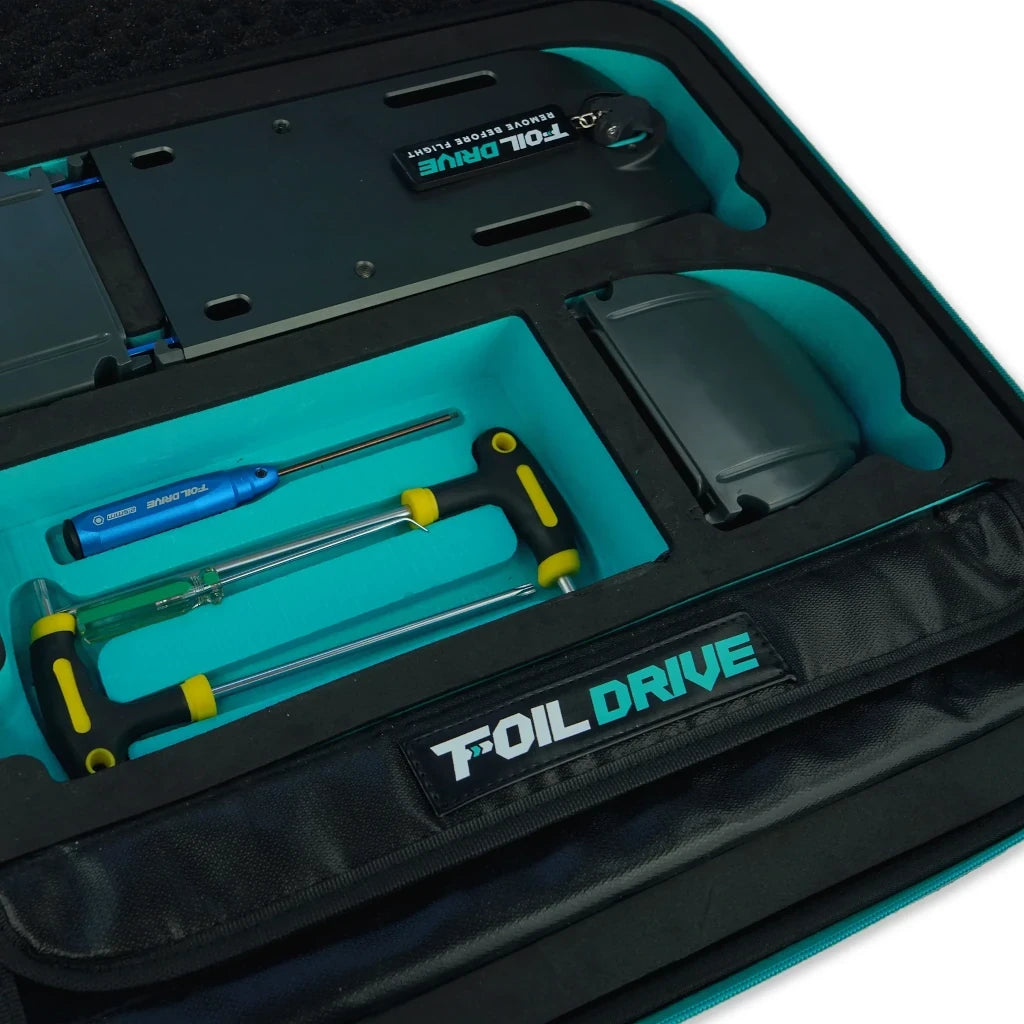

Foil Drive Gen2 Carry Case

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Tech Specs

System Nominal Voltage: 40V
Battery Capacity Range: 332-594Wh
Max Thrust: 29kg / 63.9lbs
Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
Dimensions with Battery: L525x W125 x H50mm
Horsepower: 2.36HP
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

* NO RETURNS ON BATTERIES
