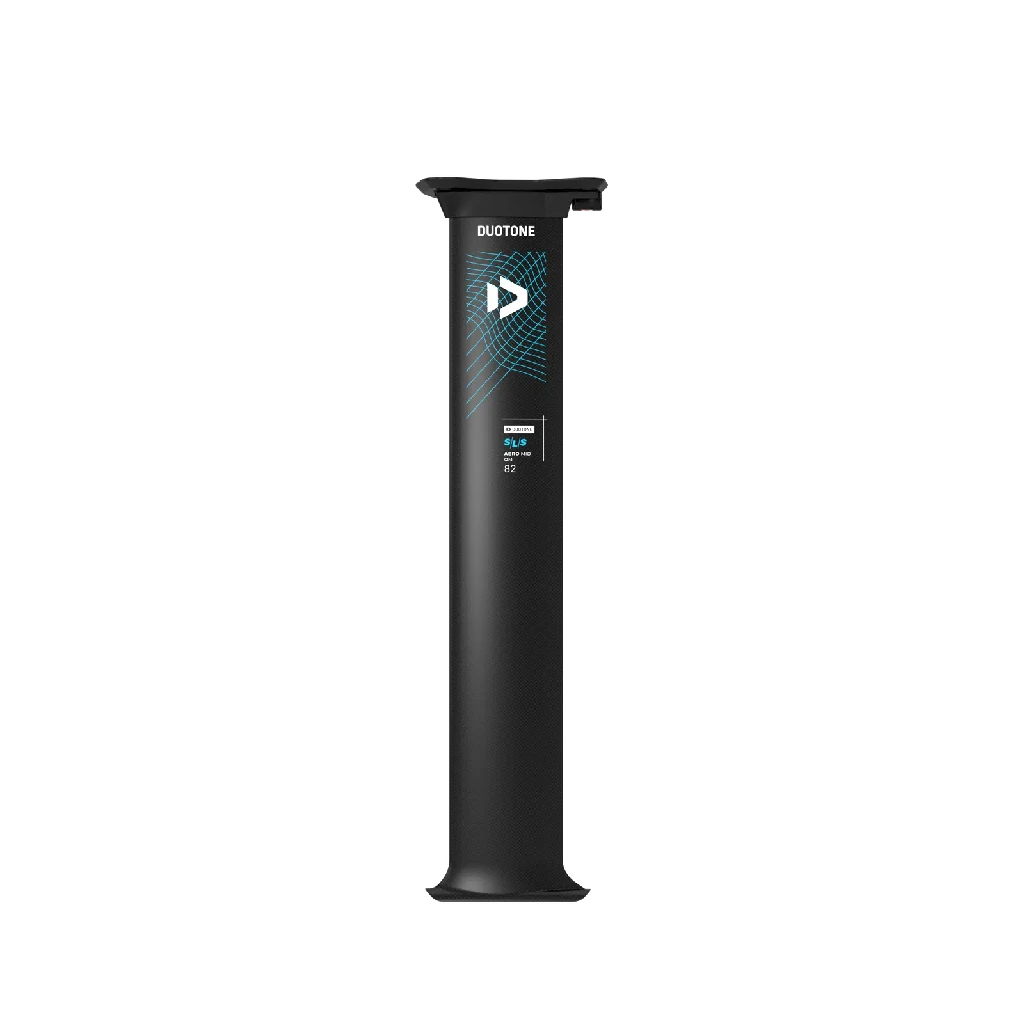

    Mast Aero Mid QM SLS

    STIFF CARBON MAST WITH QUICKMOUNT SYSTEM

    Our new Carbon Quickmount mast makes foiling easier than ever! No tools, no stress - simply leave your base plate on the board and mount your foil tool-free in just a few seconds in your favorite position every time you hit the water!
    The profile of the Aero Mid QM SLS mast is located between the SLS and D/LAB mast, aiming to reduce drag compared to the SLS mast while still achieving high strength values in both bending and torsional directions. This results in an incredibly fast and responsive riding experience, even with larger wingspan wings.

    Building upon the success of our Quickmount system, first introduced on our alu masts, it was clear to us that we needed to also implement this feature to our carbon mast customers.

    We've developed a new profile, with a thickness and chord length, half way between our thicker SLS mast and our thinner D/LAB mast. This makes it the perfect choice for those wanting the ease of use of the Quickmount system, in a premium and light carbon construction that fits our 3BS fuselages and D/LAB front wings.

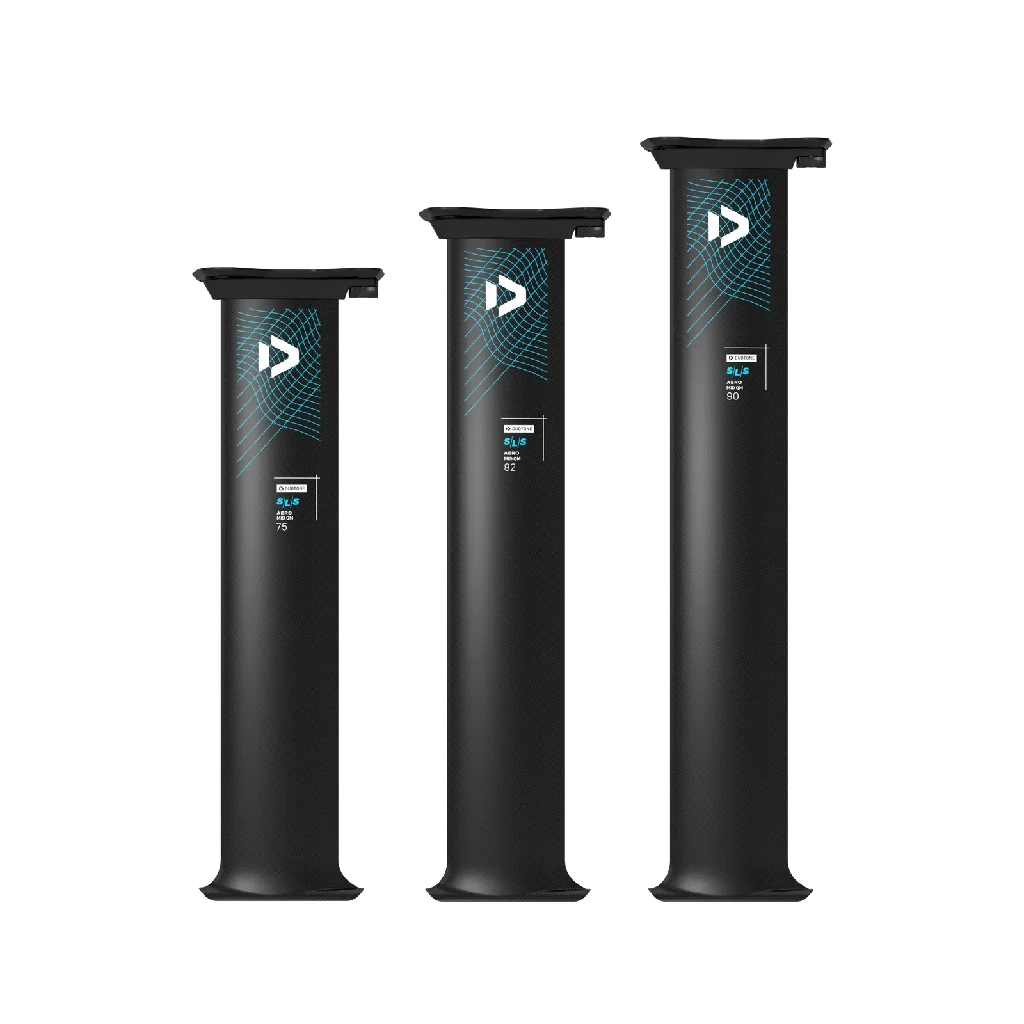

    Available in 75 cm, 82 cm and 90 cm

    Key Features

    Two-piece concept

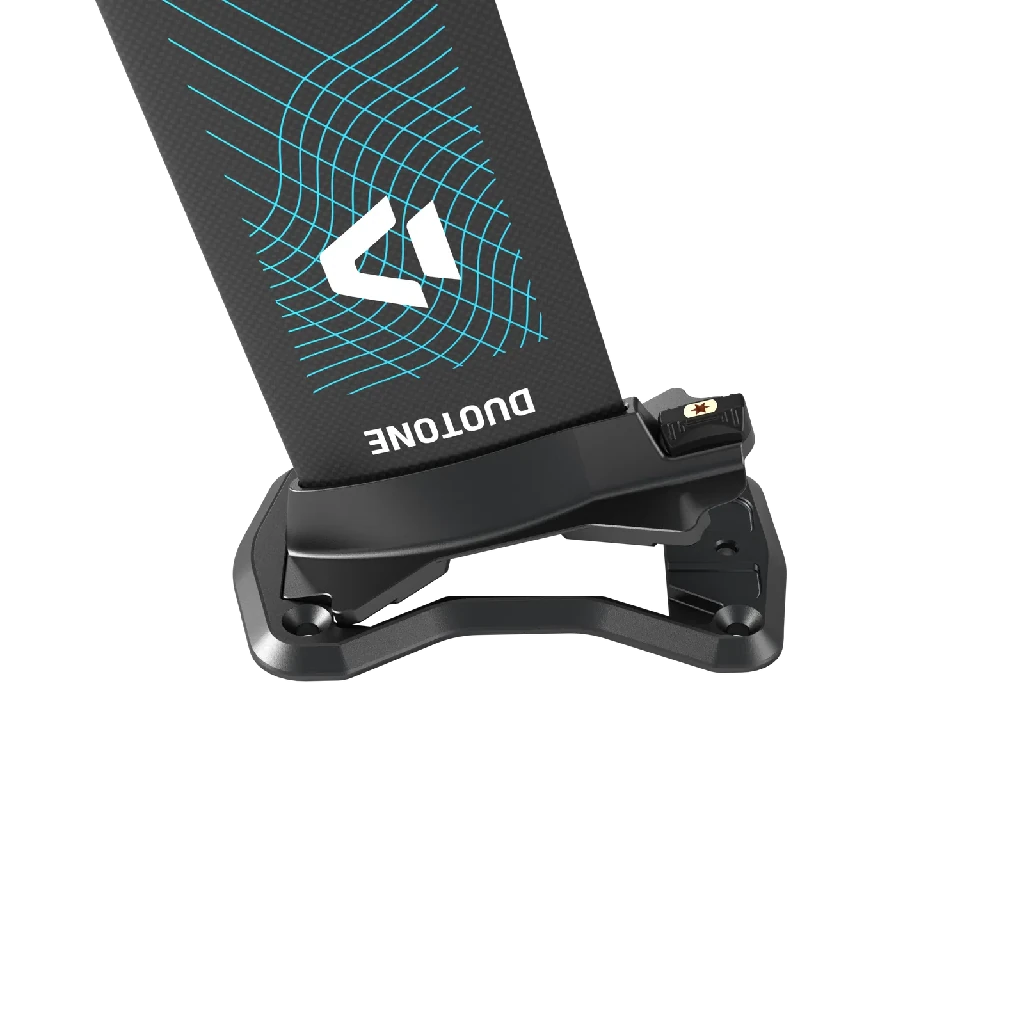

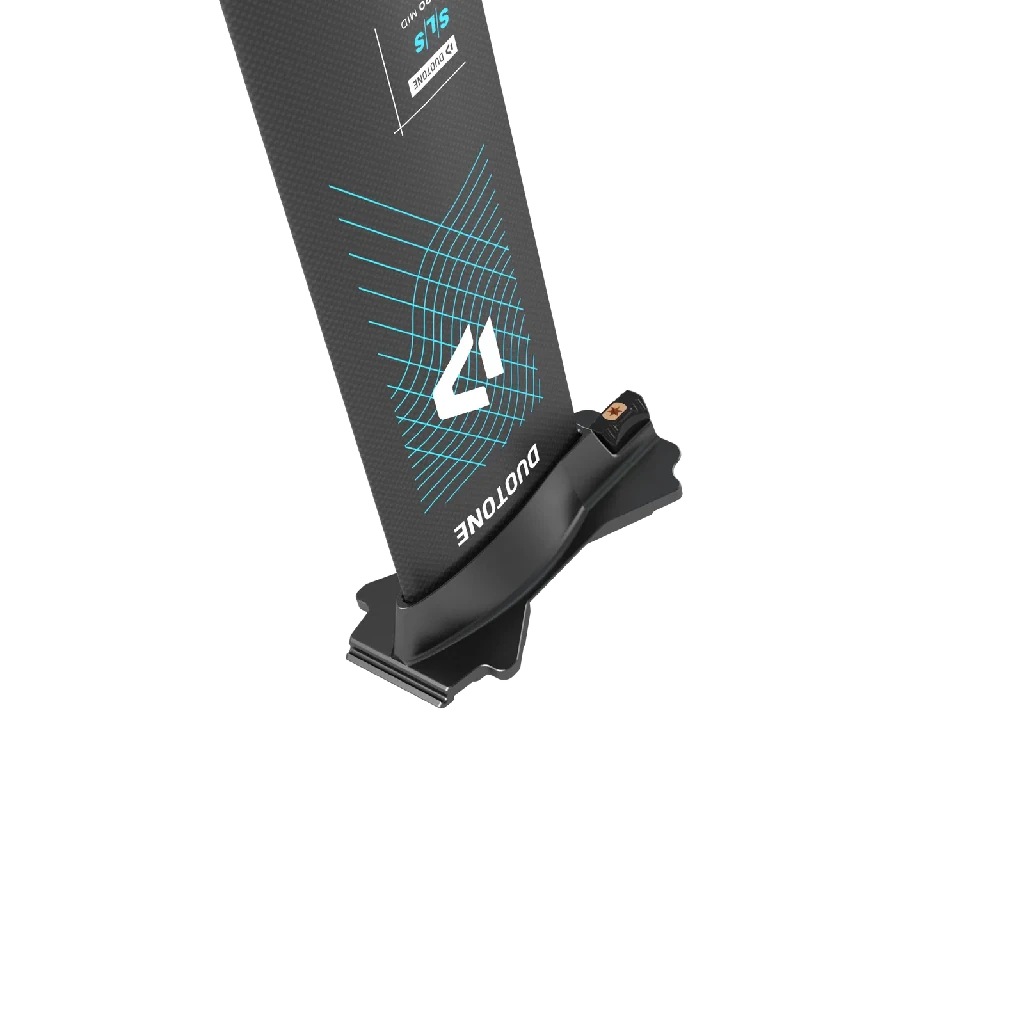

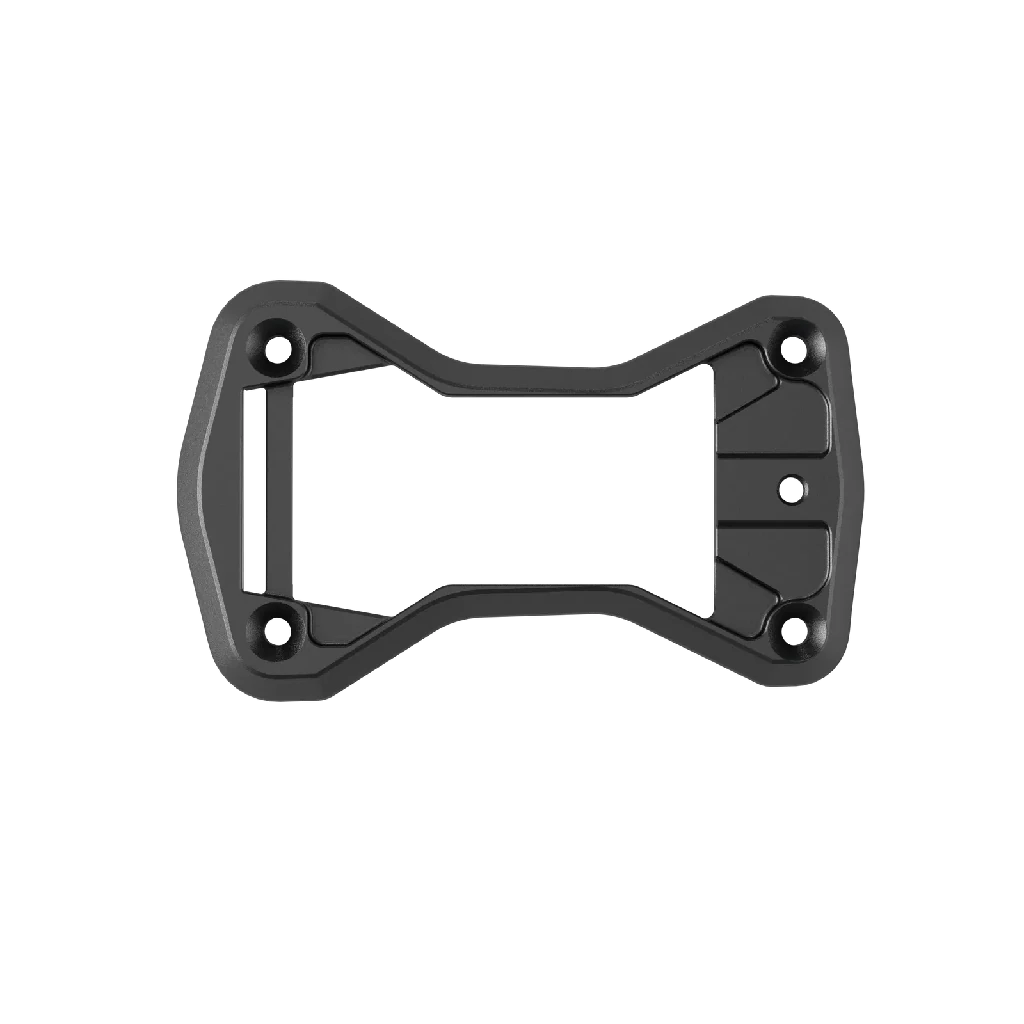

    Base plate & mast adapter (Mono Claw)

    Fast and easy foil mounting
    Tool-free mast mounting to board/base plate

    Same force
    Same force transmission as a fixed plate

    Standard dimensions
    Standard foil mounting dimensions



    Sizes and Specs

    Specification 75 cm 82 cm 90 cm
    Lenght (cm) 75 82 90
    Chord (mm) 130 130 130
    Thickness (thinnest point in mm) 17.5 17.5 17.5
    Weight (kg / TOLERANCE: +/- 5% POSSIBLE) 1.80 2.16 TBC
    Screws 3BS 3x M8x50 TX45 3x M8x50 TX45 3x M8x50 TX45
    Rec. Torque 15Nm M8 15Nm M8 15Nm M8
    Construction Prepreg Carbon Prepreg Carbon Prepreg Carbon
    Disciplines Wing, Prone, Kite, SUP, Downwind, Pump Wing, Prone, Kite, SUP, Downwind, Pump, Windsurf Wing, Prone, Kite, Windsurf
    Conditions Flat water lakes to small size surf All water states - lakes to medium size surf All water states - lakes to medium size surf
    Character Strong, easy, maneuverable, direct response, compact in the air Strong, direct response, great allrounder Strong, direct response, extra room
    Compatibility Fuselages D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon
