    Front Wing Crest D/LAB

    PRONE / FREEFLY / WAKE / FOIL ASSIST

    Introducing the Crest D/LAB – expertly crafted for riders seeking peak performance in prone foiling, carving turns with a wing, or enjoying foil assist from wind swell to mid-sized waves.
    The Crest D/LAB is built for instant response and fluid carving, adapting seamlessly to a wide range of wave sizes. Whether you're riding mellow peelers or steeper walls, it delivers unmatched versatility and control.

    Efficient pumping and excellent glide make connecting waves easy, while a forgiving stall speed ensures consistent momentum and control throughout every ride.

    Its unique design allows seamless re-entry from tip breaches, airs, and foil slides—enabling fluid transitions and dynamic maneuvers.

    Shaped with a playful outline and upturned wingtips, the Crest D/LAB blends agility with control. Its low-drag D/LAB construction reduces visible hardware, enhancing both performance and sleek, streamlined aesthetics.

    Compatible with all D/LAB Tails, S & PX Stabalizers, and the new Monobloc tails, the Crest D/LAB offers extensive tuning options for tailored riding.

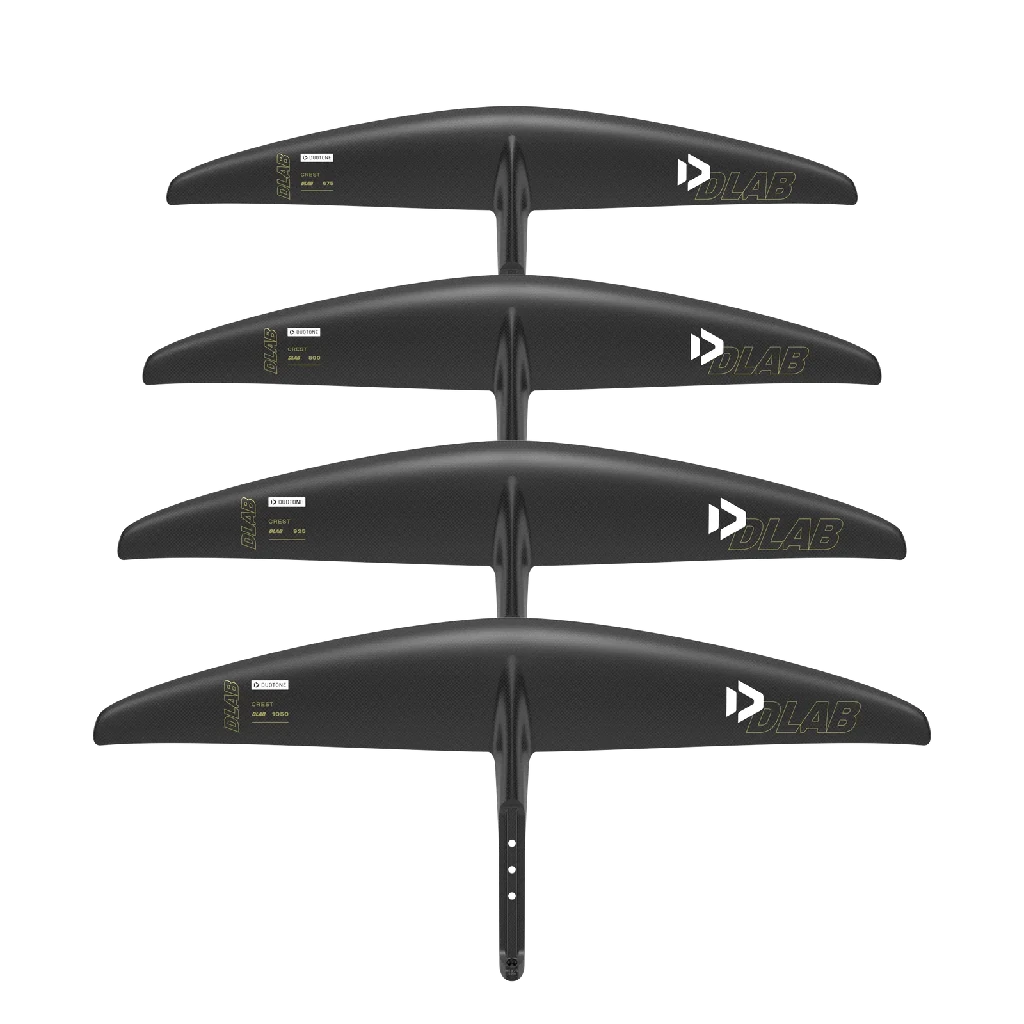

    Available in 675 cm², 800 cm², 925 cm², and 1050 cm², the Crest D/LAB suits a wide range of riders and foiling disciplines.

    Experience unmatched turning, glide, and control – the Crest D/LAB brings agility and innovation to every session.

    KEY FEATURES

    Speed Range
    Handles a wide range of speeds, from smaller to larger surf.

    Instant Response
    Delivers immediate, intuitive turning for seamless carving.

    Wave Connectivity
    Effortlessly connects waves with efficient pumping and glide, with a forgiving stall speed.

    Fluid Re-Entry
    Smooth re-entry from tip breaches, airs, and foil slides promotes dynamic transitions and maneuvers.

    Compatibility
    Pairs with all D/LAB Tails, S & PX Stabilizers, and new Monobloc Tails for complete setup flexibility.

    Curvature Design
    Moustache-style curvature with upturned wing tips enhances control and agility.

    Low Drag Construction
    D/LAB build with minimal visible screws ensures performance and clean aesthetics.

    Duotone Crest D/Lab Front Wing Canada

    Sizes and Specs

    Specification 675 800 925 1050
    Surface (cm / in²) 675 / 104.6 800 / 124.0 925 / 143.4 1050 / 162.8
    Span (cm / in) 79 / 31.1 85 / 33.5 90 / 35.4 96 / 37.8
    Aspect Ratio 9.3 9 8.9 8.8
    Weight (in kg w/o Screws - Tolerance: +/- 6% possible) 0.77 0.81 0.94 0.97
    Rec. Stabilizer (Wing & Assist) PX 160 PX 160 PX 175 PX 175
    Rec. Monobloc Tail D/LAB (Wing & Assist) MB-PX 145 MB-PX 145 MB-PX 160 MB-PX 160
    Rec. Stabilizer (Prone) S 160 S 160 S 160 S 160
    Rec. Monobloc Tail D/LAB (Prone) MB-S 160 MB-S 160 MB-S 160 MB-S 160
    Screw to D/LAB Tail M6x25 M6x25 M6x25 M6x25
    Rec. torque D/LAB Tail screw NM 10 NM 10 NM 10 NM 10
    Screws to Mast 3xM8x50 3xM8x50 3xM8x50 3xM8x50
    Rec. torque mast screw NM 15 NM 15 NM 15 NM 15
