    Note:

    • This product is NOT currently on order. Please contact us to check availability and arrange a special order.

    Inventory:

    Notify me when this product is available:

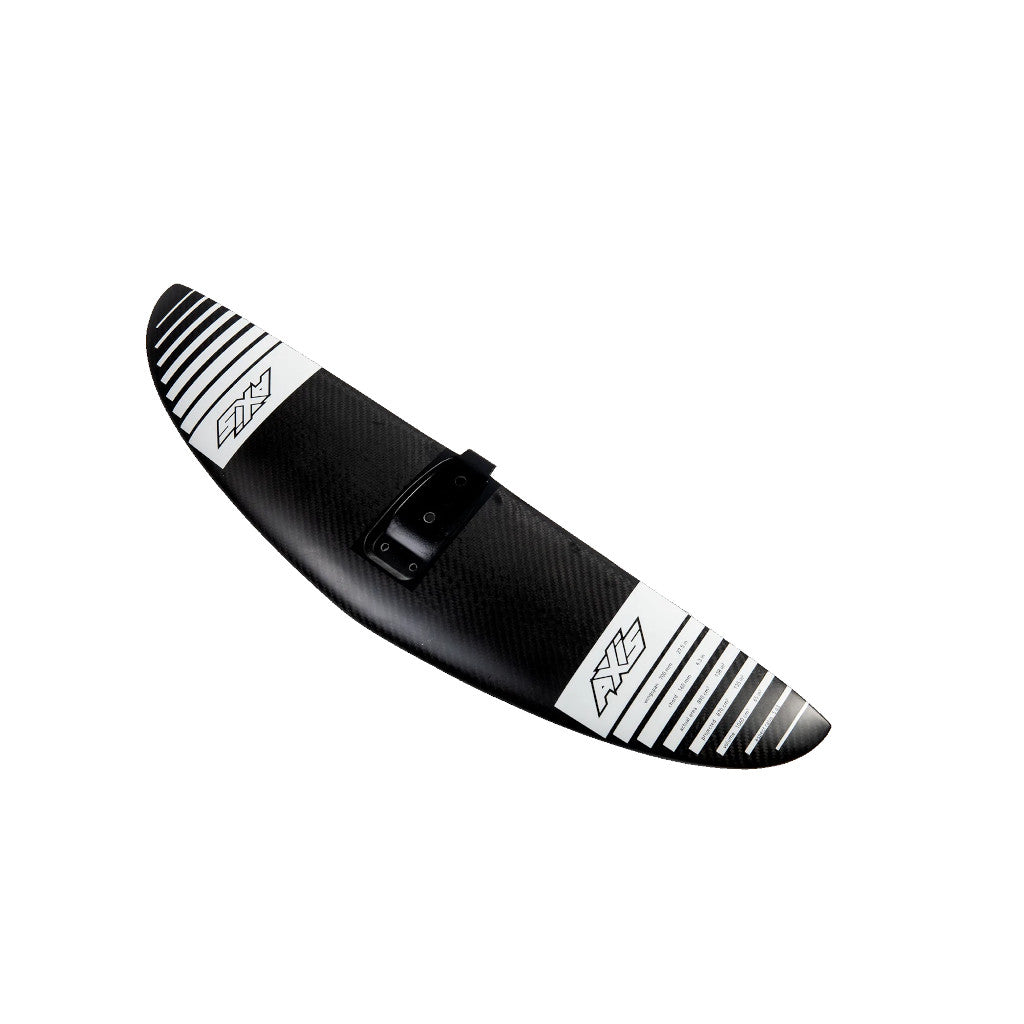

    AXIS HPS 700 Carbon Wing

    * Due to it's size, shipping is not included with this wing. Please contact us for a shipping quote.

    The High Performance Speed (HPS) wings are FAST. Designed for the ultimate in performance, but yet still usable by most levels of riders. Since the HPS wings use their own foil section with less camber and narrower chord, we developed a special fuselage that will accommodate all the HPS and future performance front wings.

    The HPS wings are the ideal performance wings for WINGING and DOWNWIND. High level riders they also SUP, PRONE, WAKE and WINDSURF foil the bigger sizes, while the smaller sizes are perfect for TOW, freestyle WINGING and KITE foiling.

    This is a new generation of front wings made for FAST performance riding, while it's still stable and predictable with enormous amount of glide and great turning.

    PLEASE NOTE - This wing is only compatible with the Black fuselages

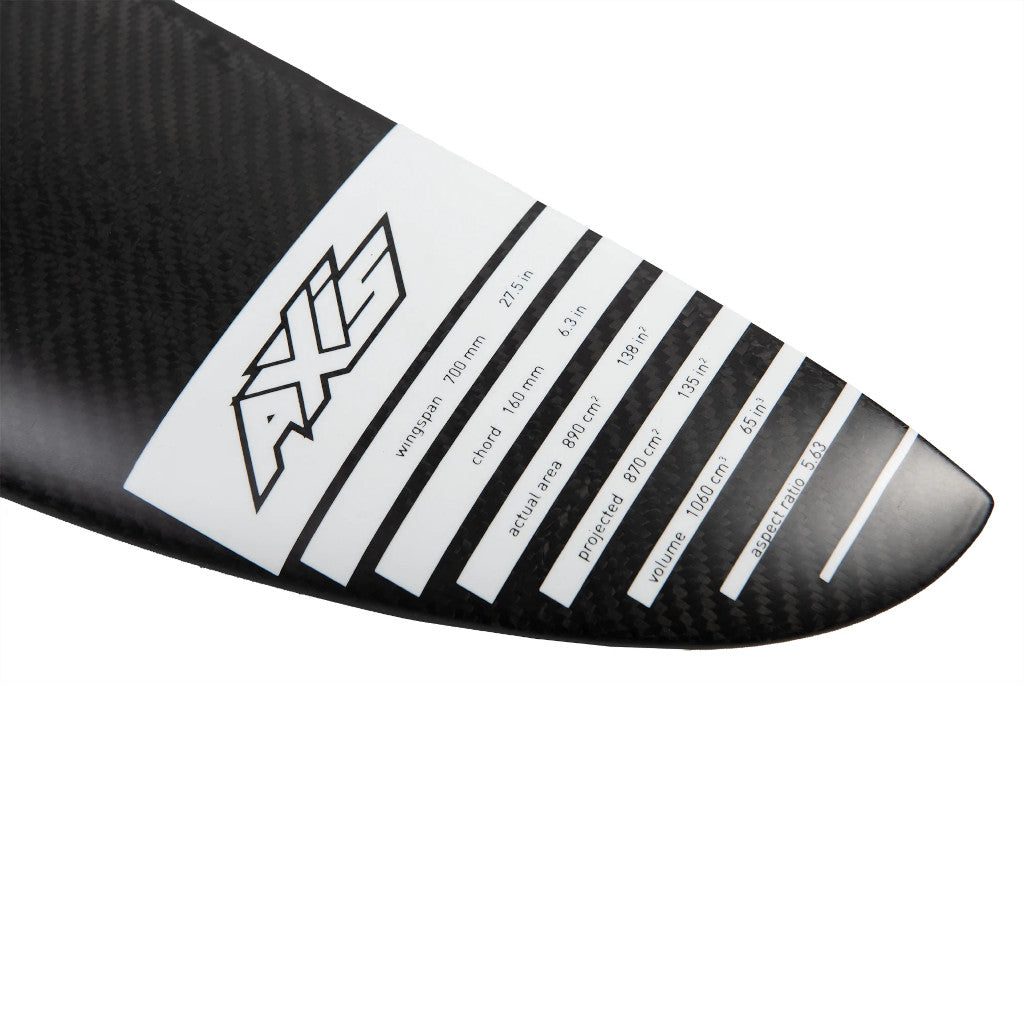

    Technical Data:

    WINGSPAN: 700 mm / 27.5 inches
    MAX CHORD: 160mm / 6.3inches
    ASPECT RATIO: 5.63
    ACTUAL AREA: 890 square cm / 138 sq inches
    CAMBER (as % of CHORD): 2.5
    VOLUME: 1060 cubic cm / 65 cubic inches

    Recommended use:

    WING Surfing for intermediate + level. Stronger wind conditions - FAST Riding
    Prone / Surf - Intermediate + level. Medium + waves, FAST riding and turning
    Kite - smooth fast speed riding. Most levels.

    Rear Wing Options:

    • 500mm Carbon for max control, stability and slower ride (entry levels)
    • 460mm Carbon for high speed and loose turning (advanced)
    • 420mm Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for fast riding and carving.
    • 440mm Carbon for control and stability (all levels)
    • 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
    • 390mm Carbon for Wing and Surf with good turning control and additional glide
    • 370mm Carbon for loose feel and fast turning, with less stability (intermediate). The rear wing that does it all - One of our favorite wings for the HPS front wings.
    • 340mm Carbon for even looser feel and even less drag and more speed. (advanced)
    • 500mm Anhedral Carbon specific to windsurf foiling
        Axis Foils HPS Wing Series Comparison
